Carbon Molecular Sieve
Product name:Carbon Molecular Sieve
Properties:

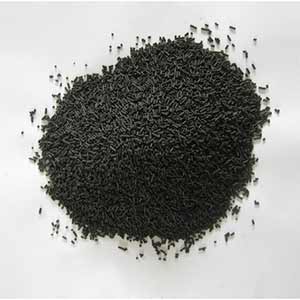

The component of carbon molecular sieve (CMS) is carbon. CMS takes the appearance of cylindrical black solid, contains countless 4 angstrom fine pores, it can be used to separate air into nitrogen and oxygen .In industry, CMS can concentrate nitrogen from air with PSA systems. Our CMS products have the character of large nitrogen yield capacity; high nitrogen recovery. It can meet the requirement of all types of PSA nitrogen systems.
Specification:
| Item | Carbon Molecular Sieve | |||
| Appearance | Black extruded pellet | |||
| Diameter(mm) | 1.3/1.6/2.2 or customized | |||
| Bulk density(g/ml) | 640-660 | |||
| Crushing strength(N)≥ | 100 | |||
| Dust (Turbidity meter) (ppm)≤ | 100 | |||
| Type | Adsorbent pressure(MPa) | Nitrogen purity(N2%) | Nitrogen quantity (NM3/h.t) | Nitrogen recoveryN2/Air(%) |
| CMS 1 | 0.8 | 99.99 | 70 | 21 |
| 99.9 | 140 | 27 | ||
| 99.5 | 200 | 36 | ||
| 99 | 260 | 41 | ||
| 98 | 330 | 48 | ||
| CMS2 | 99.99 | 90 | 25 | |
| 99.9 | 160 | 34 | ||
| 99.5 | 220 | 43 | ||
| 99 | 290 | 48 | ||
| 98 | 360 | 54 | ||
| CMS3 | 99.99 | 100 | 26 | |
| 99.9 | 175 | 35 | ||
| 99.5 | 240 | 44 | ||
| 99 | 300 | 49 | ||
| 98 | 370 | 55 | ||
| CMS4 | 99.99 | 110 | 27 | |
| 99.9 | 190 | 36 | ||
| 99.5 | 260 | 45 | ||
| 99 | 310 | 50 | ||
| 98 | 380 | 56 | ||
Application:
Carbon molecular sieve can be used to separate air into nitrogen and oxygen also carbon molecular sieve is widely applied in petroleum chemical industry, the heat treatment of metal, the electronic manufacture and food preservation industries.
Package:
Carton box or Carton drum or plastic drum or as per customer’s requirement.
Storage:
The product as desiccant cannot be exposed in the open air and should be stored in dry condition with air-proof package.
